DC Converter Canon
Canon

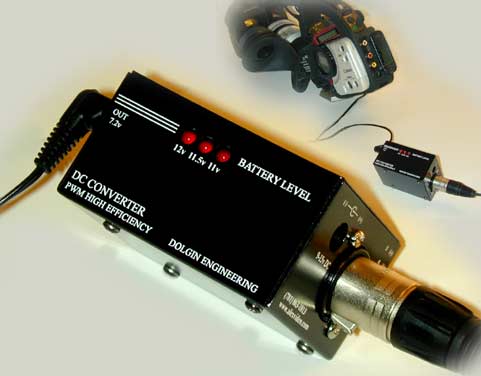

XL/GL/XLH1 7.2V DC Converter
Universal
Step Down DC converter This
universal DC voltage converter allows the user to connect any
external DC power source to a Canon XL/GL family camera. It incorporates
a highly efficient PWM switching power supply. An innovative overvoltage/overcurrent/reverse
polarity protection circuit guards your camera during operation.
It runs cool, as most of the battery charge is delivered to the
camera, not dissipated as heat.
Voltage
converter specifications Input
voltage .. . 9-25V
Output voltage .7.2V
"Fuel gage" battery charge LEDs
Over current/short circuit/reverse polarity protection (fused)
"Panasonic" style battery jack
4-pin XLR DC IN jack
Metal construction
3"x2"x1.5"
Warranty 2 years (parts and labor)
Connection
to the camera Use
the Canon DC Coupler DC900 "dummy battery" cord.
Power
Tap connector 2.1mm
DC jack functions as a 9-25V Power Tap connector for additional
accessories (light, external monitor)
DC
Converter for XLH1,
etc. High Power Configuration
DC-7200XLH1...$169.95
This
converter is rated to deliver up to 20W required by the new generation
HDV cameras
Requires the DC Coupler
DC900 "dummy battery" cord for camera connection
Cigarette
plug to female 4-pin XLR cable..........$19.95
(Power
the camera from any 12V-25V battery with a cigarette socket using
our DC converter)
Canon
DC900 DC Coupler for use w/CA-900 or CB-900.....$19.95
