AF100/HMC150 12V/7.2V D-Tap power kit
OEM Anton Bauer plug/cable
OEM Panasonic battery adapter cable
12V-14V/7.2V DConverter. Ordering

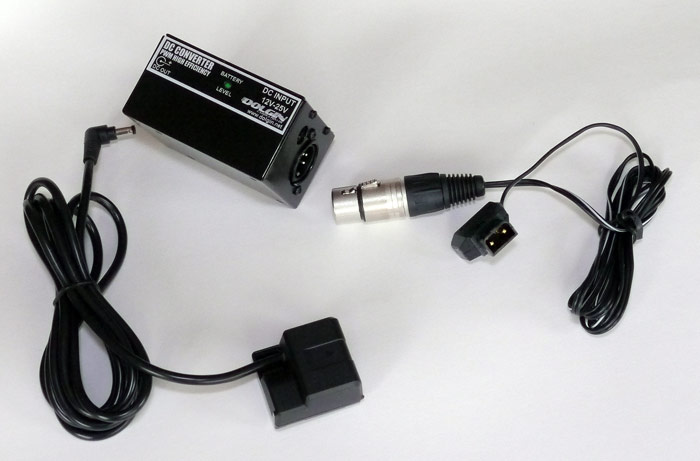

AF100/HMC150 12V/7.2V XLR4 D-Tap power kit
OEM Anton Bauer plug/XLR4 cable
OEM Panasonic battery adapter cable
12V-14V/7.2V DConverter. Ordering

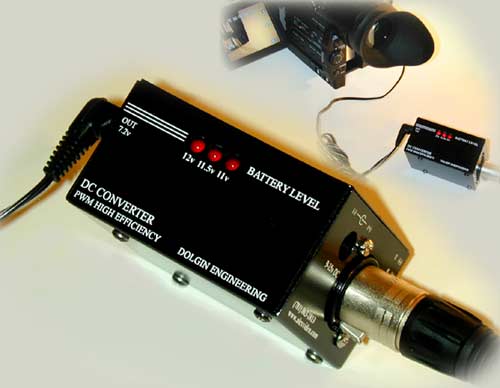

7.2V DC converter
    The DC voltage converter allows to power 7.2V cameras (AF100/HVX200/DVX100/HMC150, Canon XL-XX etc.) with any external 12V-25V DC power source.
It incorporates a highly efficient PWM switching power supply. An overcurrent/ reverse polarity protection circuit guards your camera during operation.
The converter is rated to deliver up to 20W (10W for the standard power configuration) required by the new generation HD cameras.
Smart multilevel battery state of charge indicator (calibrated for 14.4V DC power source) helps in monitoring the battery charge level.
Four threaded #4 mouning holes: use Westside AV V-Bracket or your own mounting method.
Slim (low profile) version is available. Please ask us about custom connector, cables and voltage setting configurations to fit your particular system needs.
Select the size (standard or low profile), connector and power configuration when ordering.


larger image
Standard size DC Converter

larger image

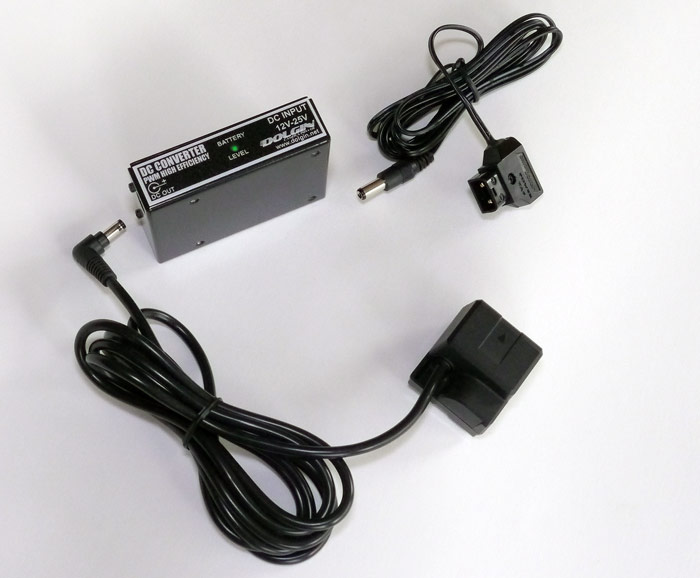

Low profile DC Converter

FEATURES

Battery status LED
The smart LED indicator gives you an indication of the battery state of charge.
Connectors
Output: 1.7mm jack*
Input: XLR4 and 2.1mm jack (hot swappable)
DC voltage adapter specifications
Input voltage ……..…. 12-25V
Output voltage ………. 7.2V
Over current/short circuit/reverse polarity protection
Metal construction
Dimensions 3"x2"x1.5" (3"x2"x.6" for low profile)
Warranty 2 years (parts and labor)

* Common connector size used by Panasonic:
1.7mm x 4.75mm (I.D. x O.D)
Canon, JVC: 1.7mm x 4.39mm (I.D xO.D)
We carry both, please specify if not 1.7mm x 4.75mm


DC converter ordering







Panasonic DC Cable DE8722
DC cable DE8722 is functionally equivalent to the Panasonic VEK8722. Connects the Panasonic AC Adapter or our DC converter to the camera DC jack (AF100, HMC150 and other newer models do not have the DC jack, use the dummy battery adapter instead, which comes with your camera)
Ordering




Mounting examples
click on images to enlarge


Westside AV V-Bracket
The V-Bracket features two piece solid aircraft aluminum, anodized black. Predrilled holes for easy mounting.
1/4"-20 threaded holes. Ordering

Cigarette plug to XLR4 (fem) cable
(Power the camera from any 12V-25V battery with a cigarette socket using our DC converter)
Ordering
