JVC

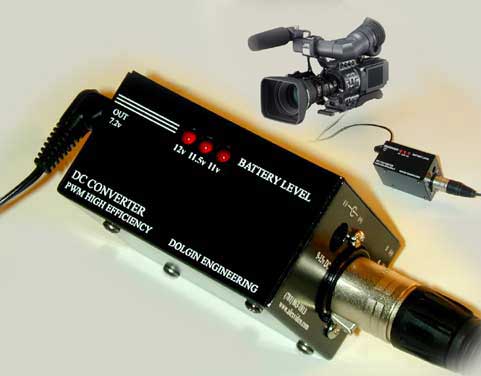

GY-HD100U 7.2V DC Converter
|
 |
|
Universal
Step Down DC converter
This
universal DC voltage converter allows the user to connect any
external DC power source to a JVC GY-HD100U camera. It incorporates
a highly efficient PWM switching power supply. An innovative overvoltage/overcurrent/reverse
polarity protection circuit guards your camera during operation.
It runs cool, as most of the battery charge is delivered to the
camera, not dissipated as heat. |
|
|
|
|
|
Voltage
converter specifications
Input
voltage ……..…. 9-25V
Output voltage …..…….7.2V
Power supplied......up to 20W
"Fuel gage" battery charge LEDs
Over current/short circuit/reverse polarity protection (fused)
2.1mm DC jack
4-pin XLR DC IN jack
Metal construction
3"x2"x1.5"
Warranty 2 years (parts and labor) |
|
|
|
|
|
Connection
to the camera
Use
the cord supplied with the camera. |
|
|
|
|
|
Power
Tap connector
2.1mm
DC jack functions as a 9-25V Power Tap connector for additional
accessories (light, external monitor) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DC
Converter for GY-HD100U
High Power Configuration
DC-7200JVC...$169.95
DC
converter ordering
|
This
converter is rated to deliver up to 20W required by the GY-HD100U
cameras
|
|
|
|
|
|
|
|
|
|
|
|
Cigarette
plug to female 4-pin XLR cable
|
|
|
|
|
|
|
|
|
|
|
|
Satisfaction
guaranteed - 30 day money back |
|
|
|
|
|
